Section 101 5 of the ipc tells us not to reduce the pipe size in the direction of flow.

Roof leader sizing. The result is the number of drains needed. This wizard makes it easy to calculate the roof design area by providing various shape calculations and the calculation for vertical walls area per international plumbing code ipc. This corresponds to a minimum top width of 6 inches. Enter table a101 2 to find a length and head that will carry 4 500 sq ft or more.

And 4 area handled by each drain. 3 size of leader required. 2 500 4 x 7 2 9 375 sq ft 4 500 sq ft. Zurn makes it easy to size roof drains.

Or 12 drains required. Sizing a roof water drain. The next step is to determine each roof area that will be served by a separate leader drain pipe scupper or downspout. The four things you will need to know are.

Can be applied to the table in figure 8 to determine the sizes of the various components of the conventional roof drainage system including roof drains vertical leaders and horizontal drainage piping. 1 inch 25 4 mm 1 gallon per minute 3 785 l m. From table a101 2 a 12 inch wide weir with a inch head carries6 460 sq ft. The first step in sizing a roof drain is to calculate the surface area of the roof that the drains will be covering as well as the average hourly rainfall rate at the building location.

Using figure 8 the 312 g p m. But this isn t the whole story. Rate of rainfall would. The availability of 7 inch top width k style gutter has been poor in the past.

50 000 4 400 11 36. The above sizing is reflected in the development of figure 4 downspout outlet sizing leader pipe sizing. This reveals that the minimum size for the leader pipe is 5. Smacna s new downspout and gutter sizing calculator enables the user to manually enter the design area of the roof or use the design area wizard for the calculation.

Use12 ichwdex5 inch high scuppers at four locations. Take the roof s total square footage and divide by the total square footage handled by one drain. 1 rate of precipitation. When sizing roof drains the limiting factor for the amount of water each drain will carry away is the size of leader therefore increasing.

Table 1106 3 vertical leader sizing for si. 2 total area of roof. Vertical leaders shall be sized based on the flow rate from horizontal gutters or the maximum flow rate through roof drains. The flow rate through vertical leaders shall not exceed that specified in table 1106 3.

Https Www Mifab Com Catalog Library Hydromax 28pg Walkthough Booklet Pdf

Https Www Mifab Com Catalog Library Hydromax 28pg Walkthough Booklet Pdf

Stormwater Conductors

Stormwater Conductors

M R Skylight Roofing Metal Supply

M R Skylight Roofing Metal Supply

Https Www Wadedrains Com Upl Downloads Wade Product Catalog 59c514f9698e8717897bc C9def106 Pdf

Https Www Wadedrains Com Upl Downloads Wade Product Catalog 59c514f9698e8717897bc C9def106 Pdf

Commercial Roof Drains Pvc Abs And Cast Iron

Commercial Roof Drains Pvc Abs And Cast Iron

Https Lorisweb Com Cmgt235 Dis16 Dis 16 Pdf

Https Lorisweb Com Cmgt235 Dis16 Dis 16 Pdf

Roof Drainage Reference Page Roof Online

Roof Drainage Reference Page Roof Online

Me444 Engineering Piping System Design Ppt Download

Me444 Engineering Piping System Design Ppt Download

Https Portal Ct Gov Media Dcp Pdf Occpro Pdf Ceu201213stormdrainagesizingpdf Pdf La En

Https Portal Ct Gov Media Dcp Pdf Occpro Pdf Ceu201213stormdrainagesizingpdf Pdf La En

Water And Waste Water And Basic Design Part 2

Water And Waste Water And Basic Design Part 2

Https Wadedrainscatalog Com Upload 575 Floor 20drains Pdf

Https Wadedrainscatalog Com Upload 575 Floor 20drains Pdf

Chapter 10 Storm Water Drainage Piping Philadelphia Plumbing Code Upcodes

Chapter 10 Storm Water Drainage Piping Philadelphia Plumbing Code Upcodes

Architectural Design Panels Inc Leader And Gutter Accessories

Architectural Design Panels Inc Leader And Gutter Accessories

Chapter 11 Storm Drainage 2017 Fbc Plumbing 6 Sup Th Sup Edition Upcodes

Chapter 11 Storm Drainage 2017 Fbc Plumbing 6 Sup Th Sup Edition Upcodes

Https Www Stormwaterpa Org Assets Media Bmp Manual Chapter 6 Chapter 6 4 6 Pdf

Https Www Stormwaterpa Org Assets Media Bmp Manual Chapter 6 Chapter 6 4 6 Pdf

Http Www Mdboa Com Files 2015 Ipc Design Installation And Inspection Principles Pdf

Http Www Mdboa Com Files 2015 Ipc Design Installation And Inspection Principles Pdf

How Drain Waste Vent Plumbing Systems Work Hometips

How Drain Waste Vent Plumbing Systems Work Hometips

Detail Drawings Liveroof Hybrid Green Roofs

Detail Drawings Liveroof Hybrid Green Roofs

Https Encrypted Tbn0 Gstatic Com Images Q Tbn 3aand9gct5gcuvj Yangs2xotn F4p7nutrqsu1fluzta Eouophsmzus Usqp Cau

Https Encrypted Tbn0 Gstatic Com Images Q Tbn 3aand9gct5gcuvj Yangs2xotn F4p7nutrqsu1fluzta Eouophsmzus Usqp Cau

Different Gutter Styles And Size Rain Gutters Sunshinegutterspro How To Install Gutters Gutter Sizes Gutter

Different Gutter Styles And Size Rain Gutters Sunshinegutterspro How To Install Gutters Gutter Sizes Gutter

What Are Gutter Leader Heads

What Are Gutter Leader Heads

Sanitary Sewers An Overview Sciencedirect Topics

Sanitary Sewers An Overview Sciencedirect Topics

Image Result For Valley Roof Drain Detail Roof Drain Design Details Roof

Image Result For Valley Roof Drain Detail Roof Drain Design Details Roof

Traps Interceptors And Separators Ppt Download

Traps Interceptors And Separators Ppt Download

Rem Filters Revel Environmental Manufacturing Triton Roof Drain Filters Rem Filters Revel Environmental Manufacturing

Rem Filters Revel Environmental Manufacturing Triton Roof Drain Filters Rem Filters Revel Environmental Manufacturing

Https Files Nc Gov Ncdoa Documents Files Roofingcriteria Pdf

Https Files Nc Gov Ncdoa Documents Files Roofingcriteria Pdf

Http Www Retailcrc Org Regguidance Lists Rnglist Attachments 668887 Cny00017 Pdf

Http Www Retailcrc Org Regguidance Lists Rnglist Attachments 668887 Cny00017 Pdf

Https Www Pwdplanreview Org Upload Pdf Chapter 7 20 Manual 20version 202 1 Pdf

Https Www Pwdplanreview Org Upload Pdf Chapter 7 20 Manual 20version 202 1 Pdf

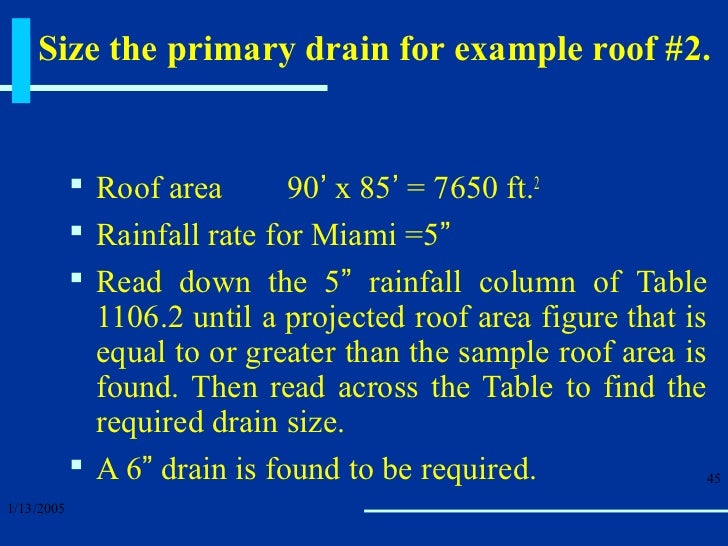

The High Velocity Hurricane Zone Roof Drainage Requirements
